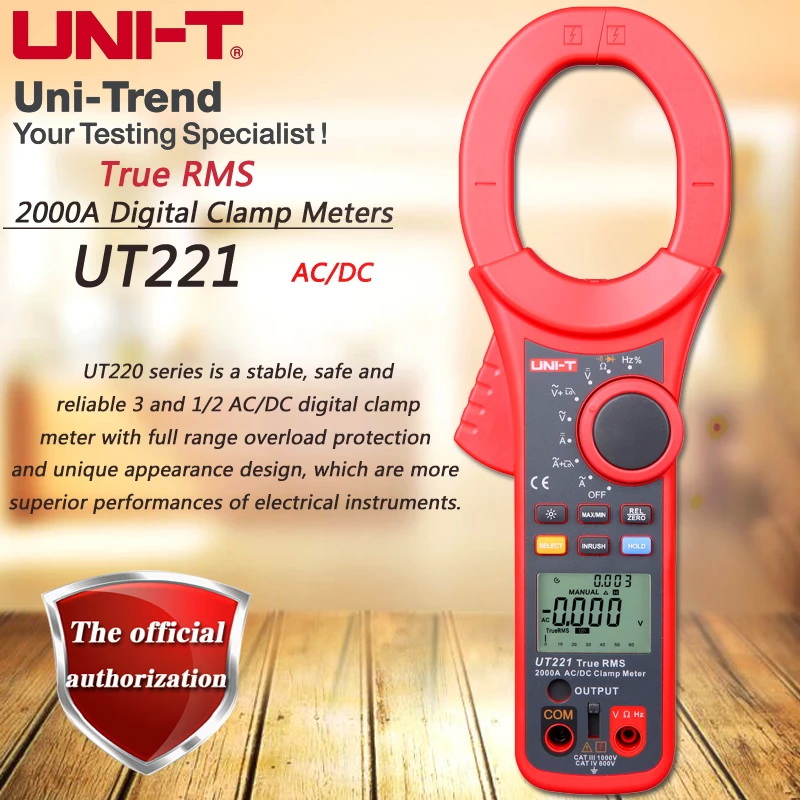

UNI-T UT221 AC DC 2,000A Digital Clamp meter

UT220 series are 2000A AC/DC digitalclamp meters. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC (and DC for UT221) current. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A (2500A for UT222).  Specifications Range UT221 AC current (A) 2000A  ±(2.5% 5) DC current (A) 2000A  ±(2.5% 5) AC voltage (V) 750V ±(1.2% 5) DC voltage (V) 1000V ±(0.8% 1) Resistance (Ω) 66MΩ ±(1% 2) Frequency (Hz) 20MHz ±(0.1% 3) Features Display count 6000 Auto range/Diode √ Jaw opening 63mm True RMS (AC voltage/AC current) √ Duty cycle 10%~90% √ Continuity buzzer √ Low pass filter √ Inrush current AC current √ Relative mode √ Data hold/MAX √ MIN/I-OUT function √ Analog bar graph 66 Full icon display √ Low battery indication √ Input impedance ≥10MΩ √ General Characterisitics Power 9V battery (6F22)    Display 43mm x 30mm Product color Red and grey Product net weight 726g Product size 298mm x 107mm x 47mm Standard accessories Test leads, output cable Standard individual packing Gift box, tool box, English manual Standard quantity per carton   Standard carton measurement 510mm x 375mm x 320mm Standard carton gross weight
