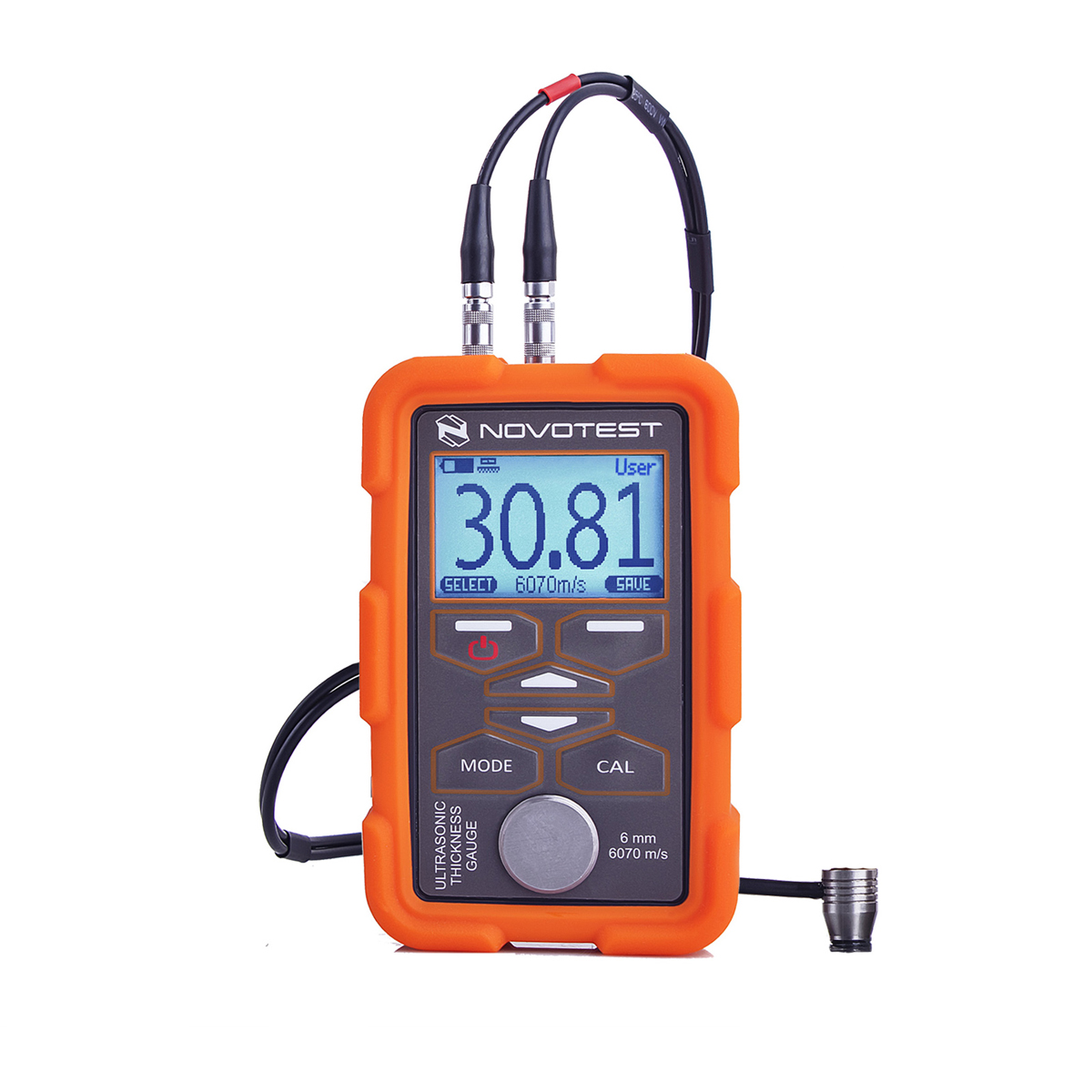

Ultrasonic Thickness Gauge | UT-1M

Description Ultrasonic Thickness Gauge | UT-1M Technical Specifications Measuring thicknesses range – Probe : 10 MHz – P112-10-6 / 2 5 MHz – P112-5-10 / 2 2,5MHz – P112-2,5-12 / 2 mm: 0.8-30 mm 1-75 mm range 2-300 mm Dimensions – Probe : 10 MHz – P112-10-6 / 2 5 MHz – P112-5-10 / 2 2,5MHz – P112-2,5-12 / 2 mm: D12 x 15 mm D17 x 20 mm D20 x 21 mm Diameter of probe contact area – Probe : 10 MHz – P112-10-6 / 2 5 MHz – P112-5-10 / 2 2,5MHz – P112-2,5-12 / 2 mm: 9 mm 14 mm 16 mm Size of plate – Probe: 10 MHz – P112-10-6 / 2 5 MHz – P112-5-10 / 2 2,5MHz – P112-2,5-12 / 2 mm: 6 mm 10 mm 12 mm Setting range of the ultrasonic velocity: 1000-17000 m/s Discrete readings on the digital indicator:  0.1 mm Response time, with no more than: 1 Basic measurement accuracy: ± (0,01 T 0.05) mm Echo mode (through coating measuring) max thickness of paint coating:  mm : 1 Standards : ASTM E797 | EN14127  |EN15317 Storage of measurement results : 256 Overall dimensions : 120 x 60 x 25 mm Operating temperature range : -5 to 40 ° C Power supply : 2 AA batteries Time of continuous work hours : not less : 10 h Weight of electronic unit with battery : no more : 0.2 kg  Ultrasonic Thickness Gauge | UT-1M
