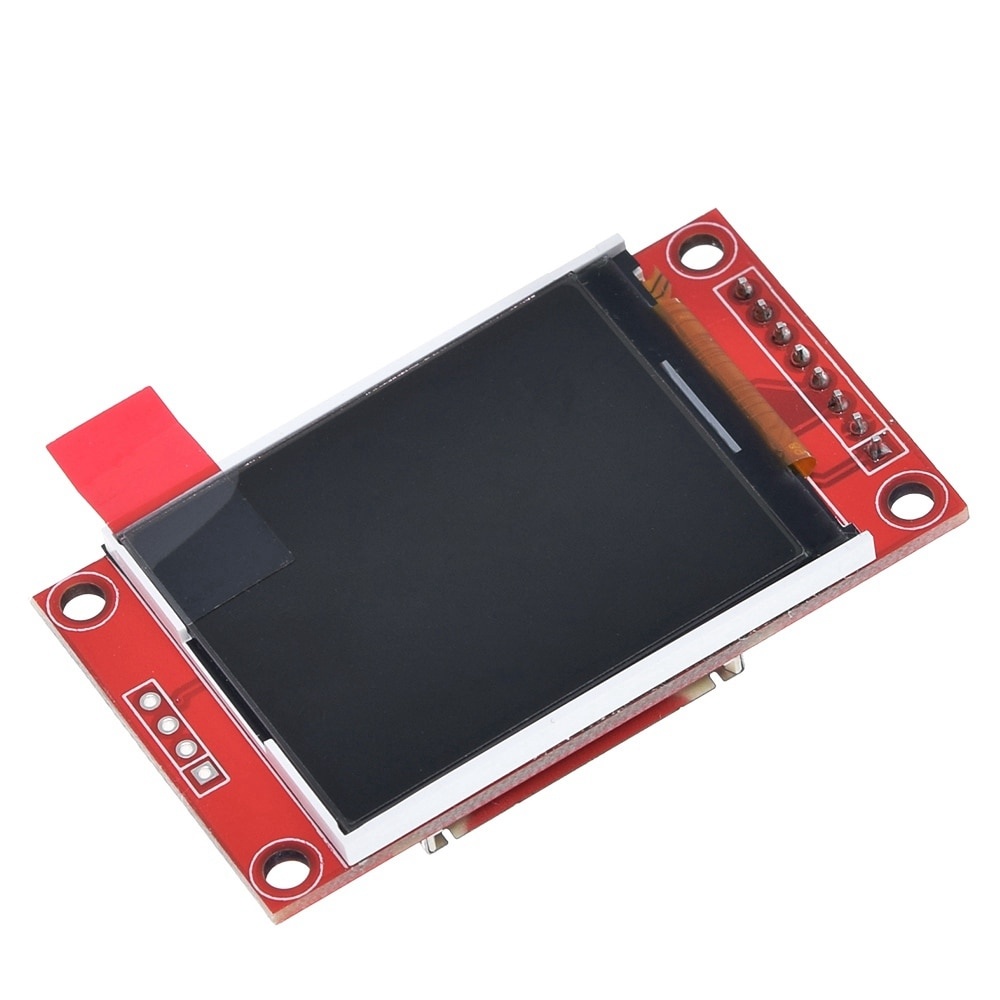

1.8 inch TFT LCD Module LCD Screen Module SPI serial 51 drivers 4 IO driver TFT Resolution 128*160 For Arduino

Description   Arduino Nano and a 1.8″ ST7735 Color TFT display Video Link：//www.youtube.com/watch?v=X8syt55ITUo Product Description 1.8-inch color screen,support 65K color display,display rich colors 128X160 resolution, clear display Using the SPI serial bus, it only takes a few IOs to illuminate the display With SD card slot for convenient function expansion Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms Military-grade process standards, long-term stable work Provide underlying driver technical support Product Parameters Name Parameter Display Color 16BIT RGB 65K color SKU MAR1801 Screen Size 1.8(inch) Type TFT Driver IC ST7735S Resolution 128*160 (Pixel) Module Interface 4-wire SPI interface Backlight 2 White Led Active Area 28.03×35.04 (mm) Module PCB Size 38.30×62.48 (mm) Operating Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Operating Voltage 5V/3.3V Power Consumption TBD Rough Weight(Package containing) 18 (g) 100% brand new and high quality 1.8 inch TFT Color LCD Display Module with SPI interface Support serial SPI mode Need just 5 IOs Port from your MCU Dot Matrix: 128X160 Size: 46x34x2mm
